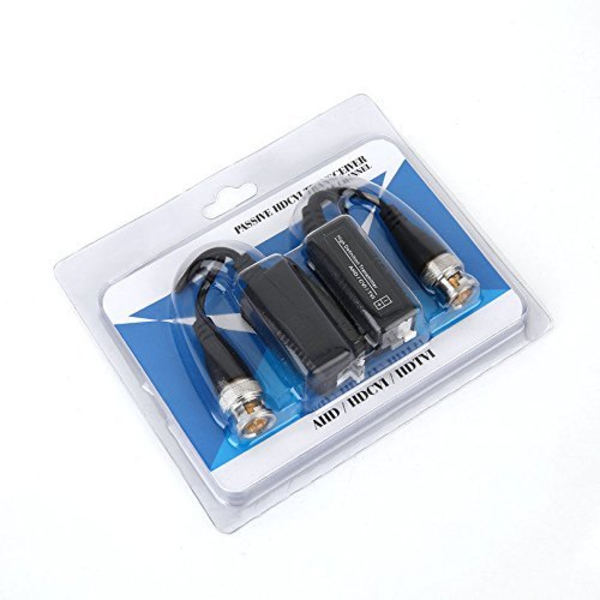

| HDCVI/AHD/HDTVI/CVBS 720P/960P/1080P/3MP/4MP/5MP Single Port HD Analog Video Passive UTP Balun | |||
| Video | |||
| Transmission Distance: | |||
| HDCVI | CVBS | AHD | HDTVI |
| 720P:600m | 960P/1080P:300m | 720P/1080P:300m
(*300m need DVR support) |
|
| BandWidth:0~50MHz | |||
| Common-mode/Differential-mode Rejection | |||
| Coaxial Cable Connector:2KV(common-mode)Per: IEC 61000-4-5 | |||
| UTP Cable Connector:2KV(different-mode/common-mode)Per: IEC 610000-4-5 | |||
| Impedance | BNC male
UTP Cable |
75 ohms
100 ohms |
|
| Wire Type | |||
| Networking Wiring | UTP cable 24-16 AWG(0.5-1.31mm) | ||
| Category Type | Cat5e/6 suggested | ||
| Impedance | 100±20Ω | ||
| DC Loop Resistances | 52Ω/1000ft(18mΩ/100m) | ||
| Differential Capacitance | 19pF/ft max(62pF/m/max) | ||
| Environmental | |||
| Temperature | Relative Humidity | Transient Immunity | |
| 0-55℃ | 0-95% | per AN SI/IEE E 587 C62.41 | |
